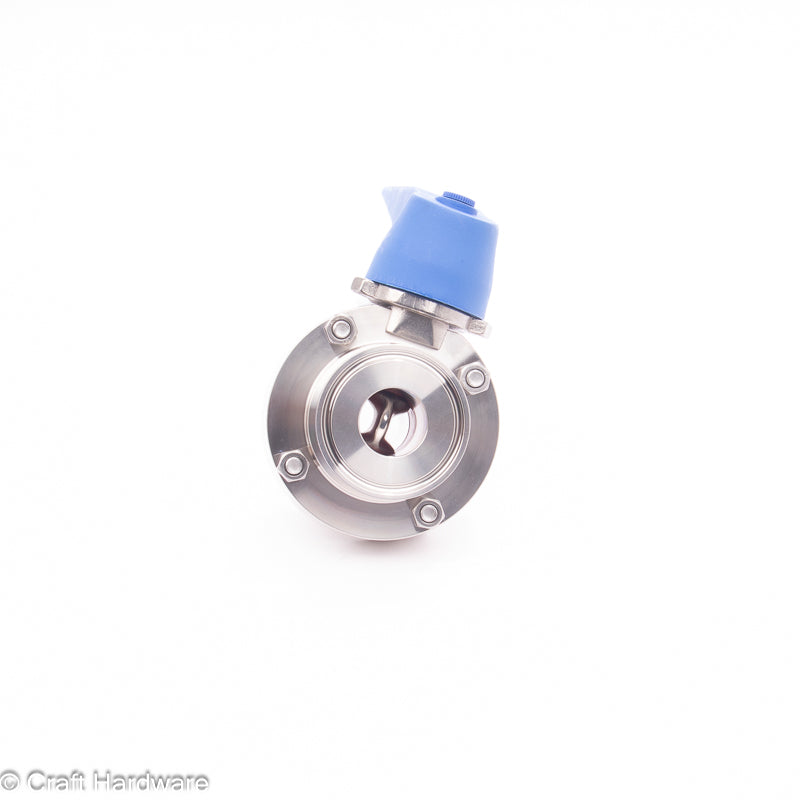

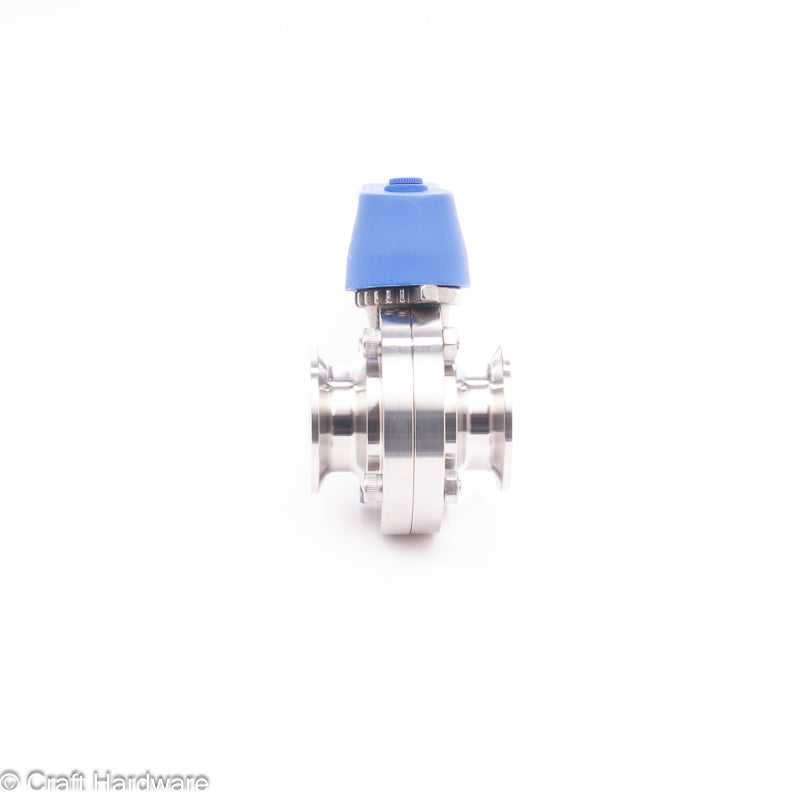

Butterfly Valve 1" Tri-Clamp with Trigger Handle

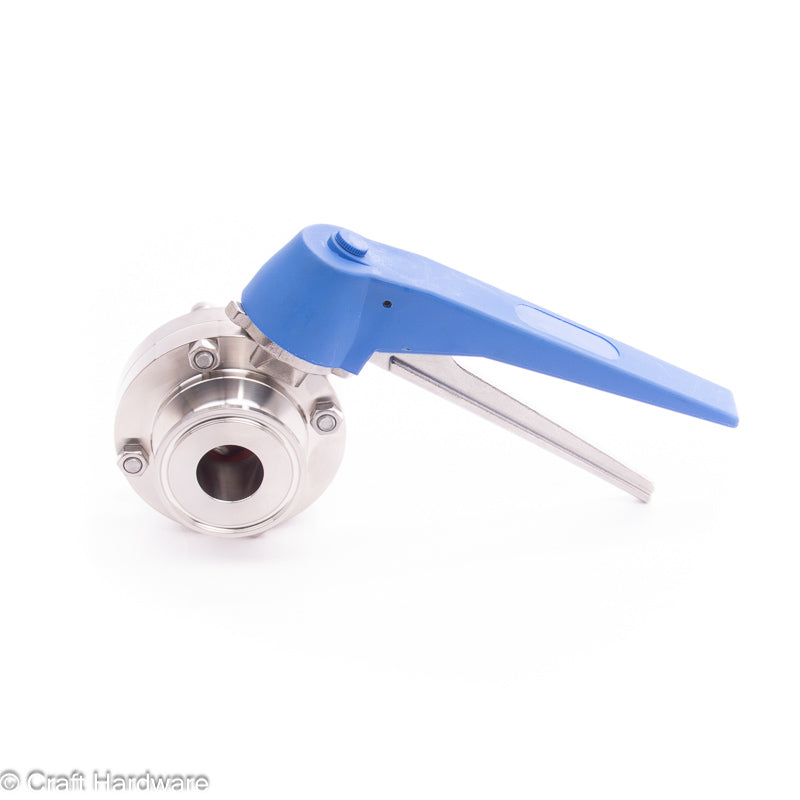

Stainless Steel 1" Tri-Clamp butterfly valve with blue squeeze trigger handle. The handle has a toothed lock ring which holds the handle in place until the level is squeezed to allow opening and closing.

If you are connecting a butterfly valve directly to a Craft Hardware kettle, I recommend the DN40 version of this product, which exactly matches the slightly larger inside diameter of the DN40 nozzles used on our kettles.

• Valve body length 66 mm
• Inner diameter 22.1 mm
• Tri-Clamp size 50.5 mm = 1.5"
• Stainless steel 1.4301
• Silicone seal rated to 140℃

Butterfly valves are not recommended where flow restriction is important, for example when lautering or restricting pump flow.
