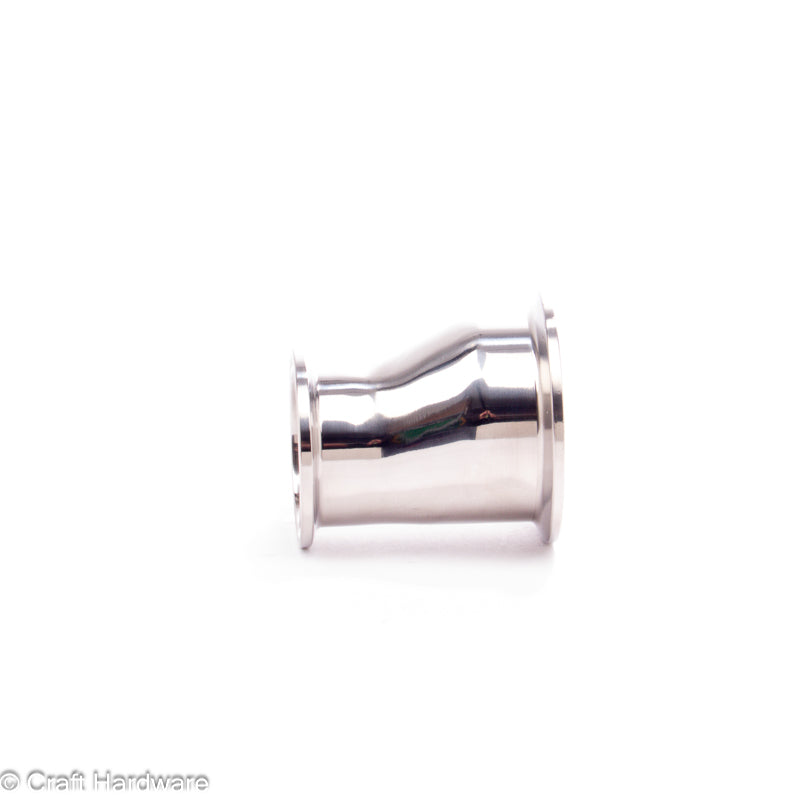

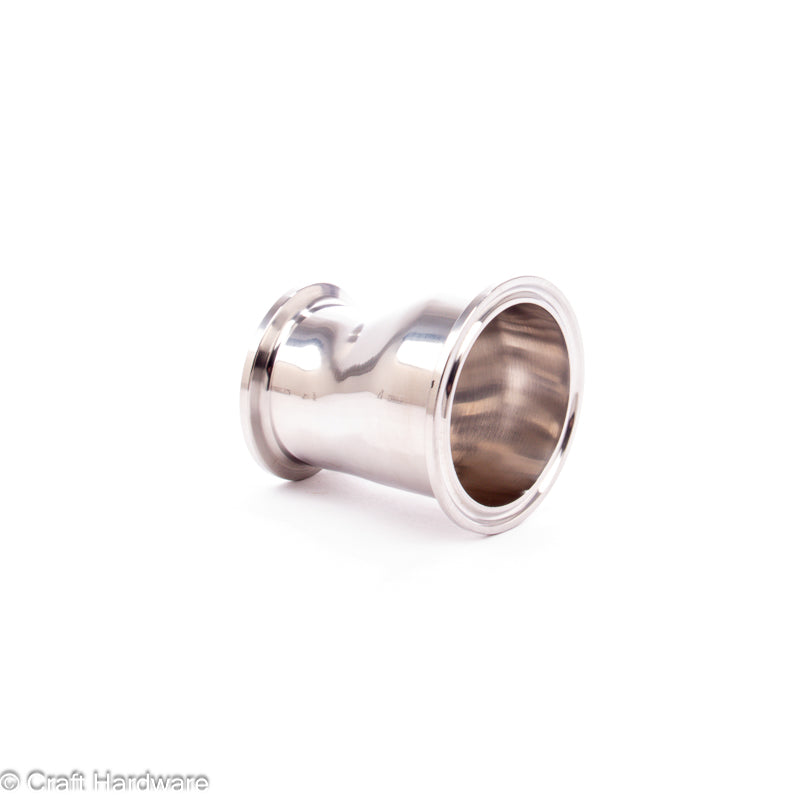

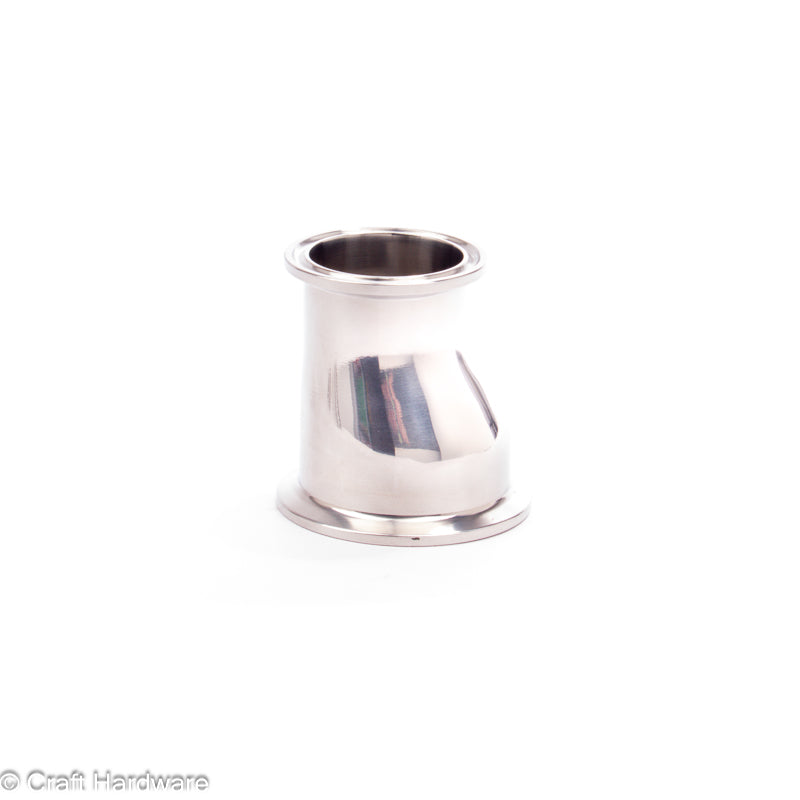

Reducer Eccentric Tri-Clamp DN 50 to DN 40

DN 50 to DN 40 Tri-Clamp eccentric reducer. Adapt between DN 50 and DN 40 without any hard steps in the flow path.

Eccentric Tri-Clamp Reducers are optimized for use in horizontal piping applications. Their flat side eliminates the risk of pooling. They are also suitable for situations in vertical installations where one part is offset from the other.

• Tri-Clamp size (1) 64 mm = DN 50
• Tri-Clamp size (2) 50.5 mm = DN 25 - DN 40
• Inner diameter (1) 50 mm
• Inner diameter (2) 38 mm
• Length 65 mm
• Material: SS 304
