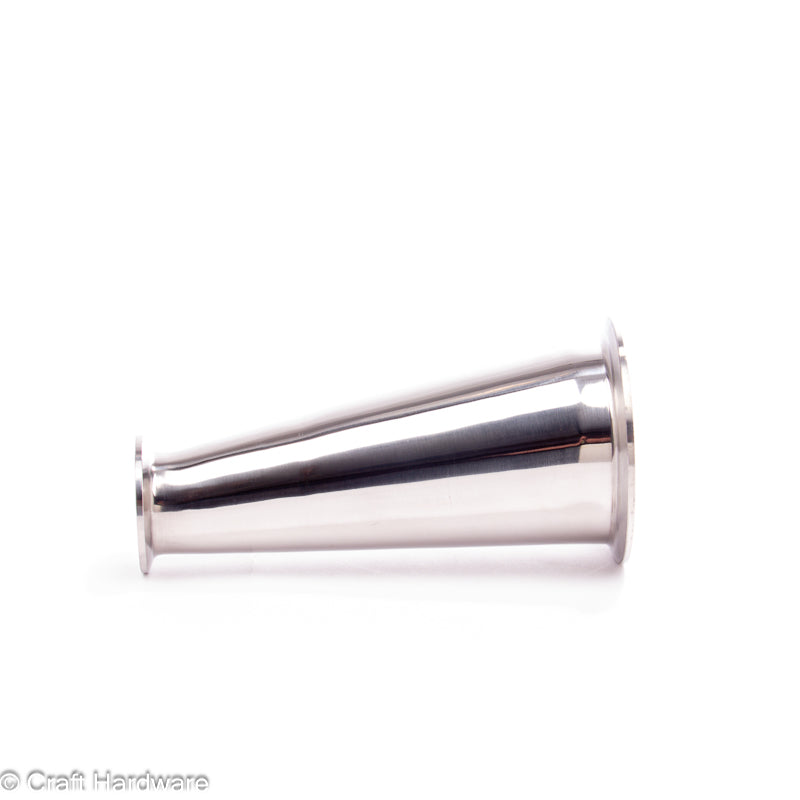

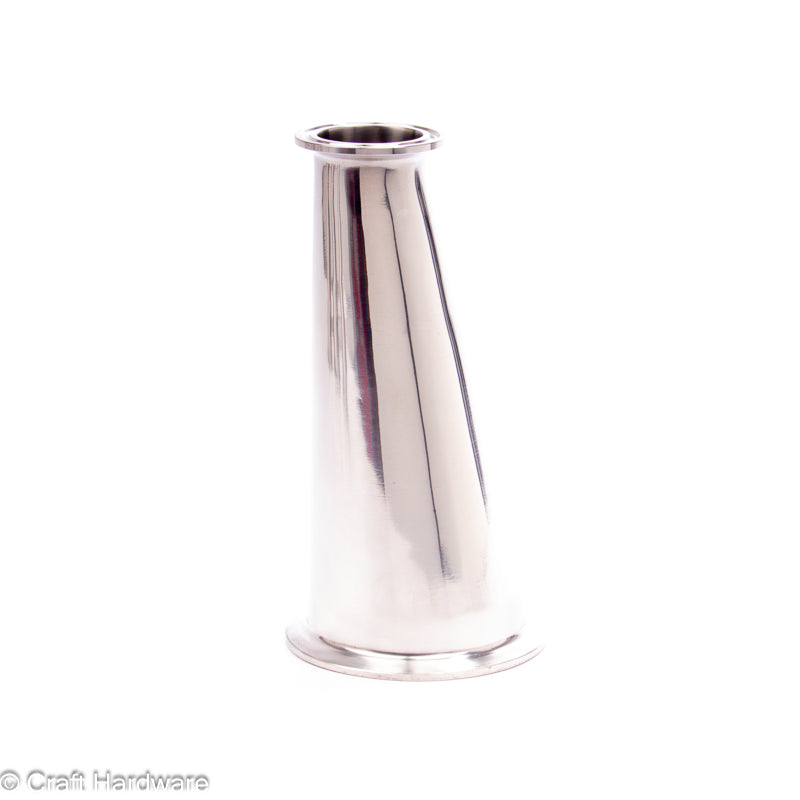

Reducer Eccentric Tri-Clamp 3" to 1.5"

3" to 1.5" Tri-Clamp eccentric reducer. Adapt between 3" and 1.5" without any hard steps in the flow path.

Eccentric Tri-Clamp Reducers are optimized for use in horizontal piping applications. Their flat side eliminates the risk of pooling. They are also suitable for situations in vertical installations where one part is offset from the other.

• Tri-Clamp size (1) 91 mm = 3"
• Tri-Clamp size (2) 50.5 mm = 1.5"
• Inner diameter (1) 72.9 mm
• Inner diameter (2) 34.8 mm
• Length 178 mm
• Material: SS 304
